Autonomous Communities and Cities of Spain from SIANE

Source: R/esp-get-ccaa-siane.R
esp_get_ccaa_siane.Rd

Return Autonomous Communities and Cities of Spain at a specified scale.

Usage

esp_get_ccaa_siane(
  ccaa = NULL,
  year = Sys.Date(),
  epsg = 4258,
  cache = TRUE,
  update_cache = FALSE,
  cache_dir = NULL,
  verbose = FALSE,
  resolution = c(3, 6.5, 10),
  moveCAN = TRUE,
  rawcols = FALSE
)

Source

CartoBase ANE (Atlas Nacional de España) provided by Instituto Geográfico Nacional (IGN), https://www.ign.es/web/ign/portal. Data are available from 2005 to the present.

Copyright: https://centrodedescargas.cnig.es/CentroDescargas/cartobase-ane

Always acknowledge authorship using the following statements:

  1. When the original digital product is not modified or altered, use one of the following statements:

    • CartoBase ANE 2006-2024 CC-BY 4.0 ign.es.

    • CartoBase ANE 2006-2024 CC-BY 4.0 Instituto Geográfico Nacional.

  2. When a new product is generated:

    • Obra derivada de CartoBase ANE 2006-2024 CC-BY 4.0 ign.es.

Data distributed through the sianedata data branch, see https://github.com/rOpenSpain/mapSpain/tree/sianedata.

Arguments

ccaa

Character string. A vector of names, codes or both for Autonomous Communities and Cities, or NULL to get all Autonomous Communities and Cities. See Details.

year

Character string or number. Release year. It must use format YYYY (assuming end of year) or YYYY-MM-DD. Historical information starts as of 2005.

epsg

Character string or number. Projection of the map: 4-digit EPSG code. One of:

cache

Logical. Whether to cache downloaded files. Defaults to TRUE. See Caching.

update_cache

Logical. If TRUE, refreshes the cached file and forces a new download. Defaults to FALSE.

cache_dir

Character string. A path to a cache directory. See Caching.

verbose

A logical value indicating whether to display informational messages.

resolution

Character string or number. Resolution of the geospatial data. One of:

  • "10": 1:10 million.

  • "6.5": 1:6.5 million.

  • "3": 1:3 million.

moveCAN

A logical TRUE/FALSE or a vector of coordinates c(lat, lon). It places the Canary Islands close to Spain's mainland. Initial position can be adjusted using the vector of coordinates. See Displacing the Canary Islands in esp_move_can().

rawcols

Logical. If TRUE, retains the raw columns of the resulting object as provided by IGN.

Value

An sf object.

Details

When using ccaa you can use and mix names and NUTS codes (levels 1 or 2), ISO codes (corresponding to level 2) or codauto (see esp_codelist). Ceuta and Melilla are included at the Autonomous Communities and Cities level in this function.

When calling a NUTS 1 level, all Autonomous Communities and Cities of that level are added.

Caching

Functions that download data store files in cache_dir. When cache_dir is NULL, they use the active package cache, which defaults to a temporary directory. Set update_cache = TRUE to replace an existing cached file. See Caching strategies in esp_set_cache_dir() to configure a persistent cache.

See also

esp_get_ccaa().

CartoBase ANE boundaries and utilities: esp_get_capimun(), esp_get_countries_siane(), esp_get_munic_siane(), esp_get_prov_siane(), esp_get_spain_siane(), esp_siane_bulk_download()

Examples

ccaas1 <- esp_get_ccaa_siane()
utils::head(ccaas1)
#> Simple feature collection with 6 features and 21 fields
#> Geometry type: MULTIPOLYGON
#> Dimension:     XY
#> Bounding box:  xmin: -13.21993 ymin: 34.70165 xmax: 4.327771 ymax: 43.66147
#> Geodetic CRS:  ETRS89
#> # A tibble: 6 × 22
#>   codauto iso2.ccaa.code nuts1.code nuts2.code ine.ccaa.name   iso2.ccaa.name.es
#>   <chr>   <chr>          <chr>      <chr>      <chr>           <chr>
#> 1 01      ES-AN          ES6        ES61       Andalucía       Andalucía
#> 2 02      ES-AR          ES2        ES24       Aragón          Aragón
#> 3 03      ES-AS          ES1        ES12       Asturias, Prin… Asturias, Princi…
#> 4 04      ES-IB          ES5        ES53       Balears, Illes  Islas Baleares
#> 5 05      ES-CN          ES7        ES70       Canarias        Canarias
#> 6 06      ES-CB          ES1        ES13       Cantabria       Cantabria
#> # ℹ 16 more variables: iso2.ccaa.name.ca <chr>, iso2.ccaa.name.gl <chr>,
#> #   iso2.ccaa.name.eu <chr>, nuts2.name <chr>, cldr.ccaa.name.en <chr>,
#> #   cldr.ccaa.name.es <chr>, cldr.ccaa.name.ca <chr>, cldr.ccaa.name.ga <chr>,
#> #   cldr.ccaa.name.eu <chr>, ccaa.shortname.en <chr>, ccaa.shortname.es <chr>,
#> #   ccaa.shortname.ca <chr>, ccaa.shortname.ga <chr>, ccaa.shortname.eu <chr>,
#> #   nuts1.name <chr>, geometry <MULTIPOLYGON [°]>

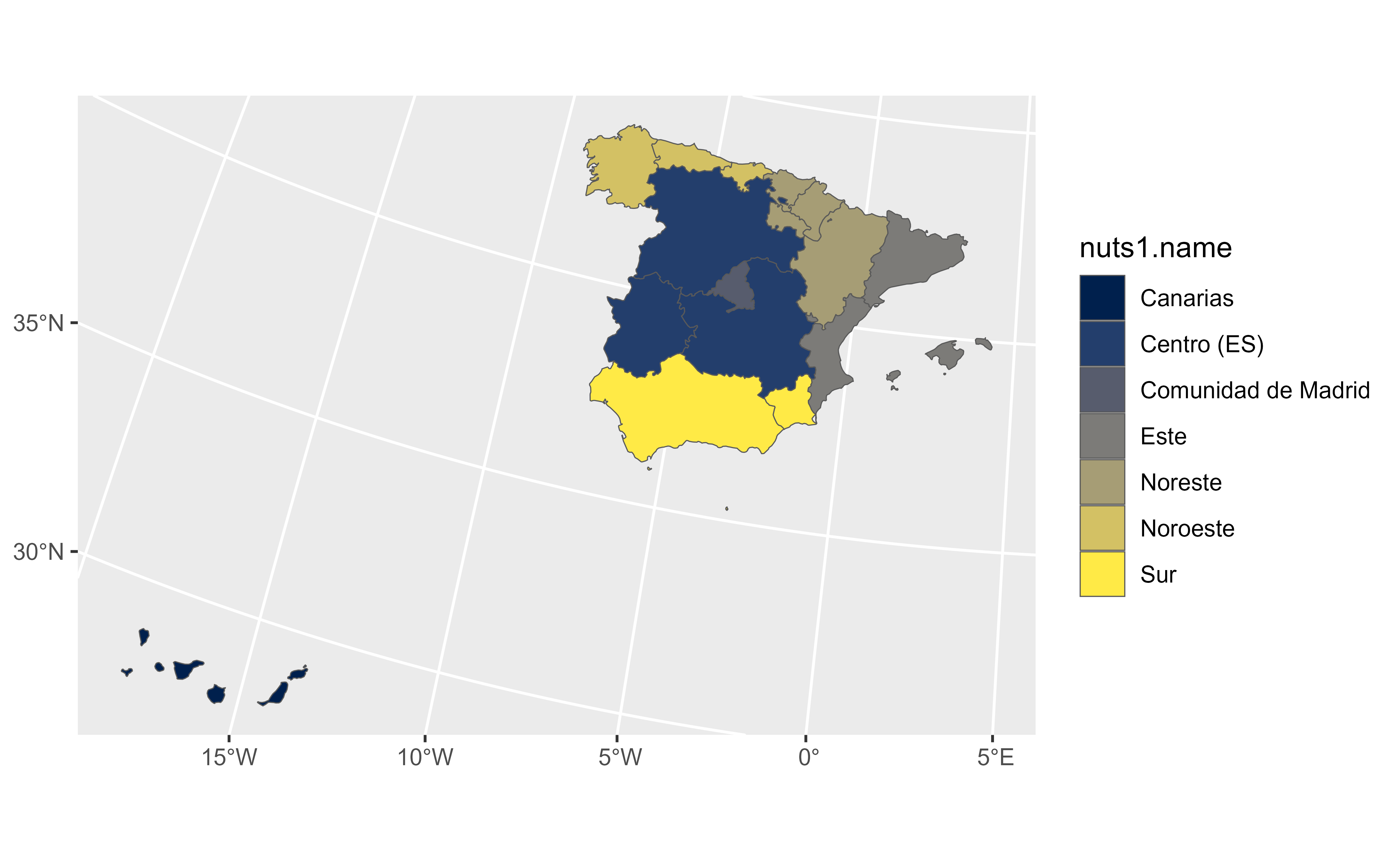

# Low resolution.
ccaas_low <- esp_get_ccaa_siane(
  rawcols = TRUE, moveCAN = FALSE,
  resolution = 10, epsg = 3035
)

library(ggplot2)

ggplot(ccaas_low) +
  geom_sf(aes(fill = nuts1.name)) +
  scale_fill_viridis_d(option = "cividis")
