Autonomous Communities and Cities of Spain from GISCO

Source: R/esp-get-ccaa.R
esp_get_ccaa.Rd

Get Autonomous Communities and Cities of Spain at a specified scale.

Usage

esp_get_ccaa(ccaa = NULL, moveCAN = TRUE, ...)

Source

https://gisco-services.ec.europa.eu/distribution/v2/.

Copyright: https://ec.europa.eu/eurostat/web/gisco/geodata/administrative-units.

Arguments

ccaa

Character string. A vector of names, codes or both for Autonomous Communities and Cities, or NULL to get all Autonomous Communities and Cities. See Details.

moveCAN

A logical TRUE/FALSE or a vector of coordinates c(lat, lon). It places the Canary Islands close to Spain's mainland. Initial position can be adjusted using the vector of coordinates. See Displacing the Canary Islands in esp_move_can().

...

Arguments passed on to esp_get_nuts

year

Year character string or number. Release year of the file. See giscoR::gisco_get_nuts() for valid values.

epsg

Character string or number. Projection of the map: 4-digit EPSG code. One of:

cache

Logical. Whether to cache downloaded files. Default is TRUE. See Caching strategies section in esp_set_cache_dir().

update_cache

Logical. If TRUE, refreshes the cached file and forces a new download. Defaults to FALSE.

cache_dir

Character string. A path to a cache directory. See Caching strategies section in esp_set_cache_dir().

spatialtype

Character string. Type of geometry to be returned. Options available are:

  • "RG": regions, returned as a MULTIPOLYGON/POLYGON object.

  • "LB": labels, returned as a POINT object.

ext

Character. Extension of the file (default "gpkg"). See giscoR::gisco_get_nuts().

verbose

logical. If TRUE displays informational messages.

resolution

character string or number. Resolution of the geospatial data. One of:

  • "60": 1:60 million.

  • "20": 1:20 million.

  • "10": 1:10 million.

  • "03": 1:3 million.

  • "01": 1:1 million.

Value

A sf object.

Details

When using ccaa you can use and mix names and NUTS codes (levels 1 or 2), ISO codes (corresponding to level 2) or codauto (see esp_codelist). Ceuta and Melilla are included at the Autonomous Communities and Cities level in this function.

When calling a NUTS 1 level, all Autonomous Communities and Cities of that level are added.

Note

Please check the download and usage provisions on giscoR::gisco_attributions().

See also

Political and administrative boundary datasets: esp_get_capimun(), esp_get_ccaa_siane(), esp_get_comarca(), esp_get_countries_siane(), esp_get_gridmap, esp_get_munic(), esp_get_munic_siane(), esp_get_nuts(), esp_get_prov(), esp_get_prov_siane(), esp_get_simpl, esp_get_spain(), esp_get_spain_siane(), esp_siane_bulk_download()

Datasets sourced from GISCO: esp_get_munic(), esp_get_nuts(), esp_get_prov(), esp_get_spain()

Examples

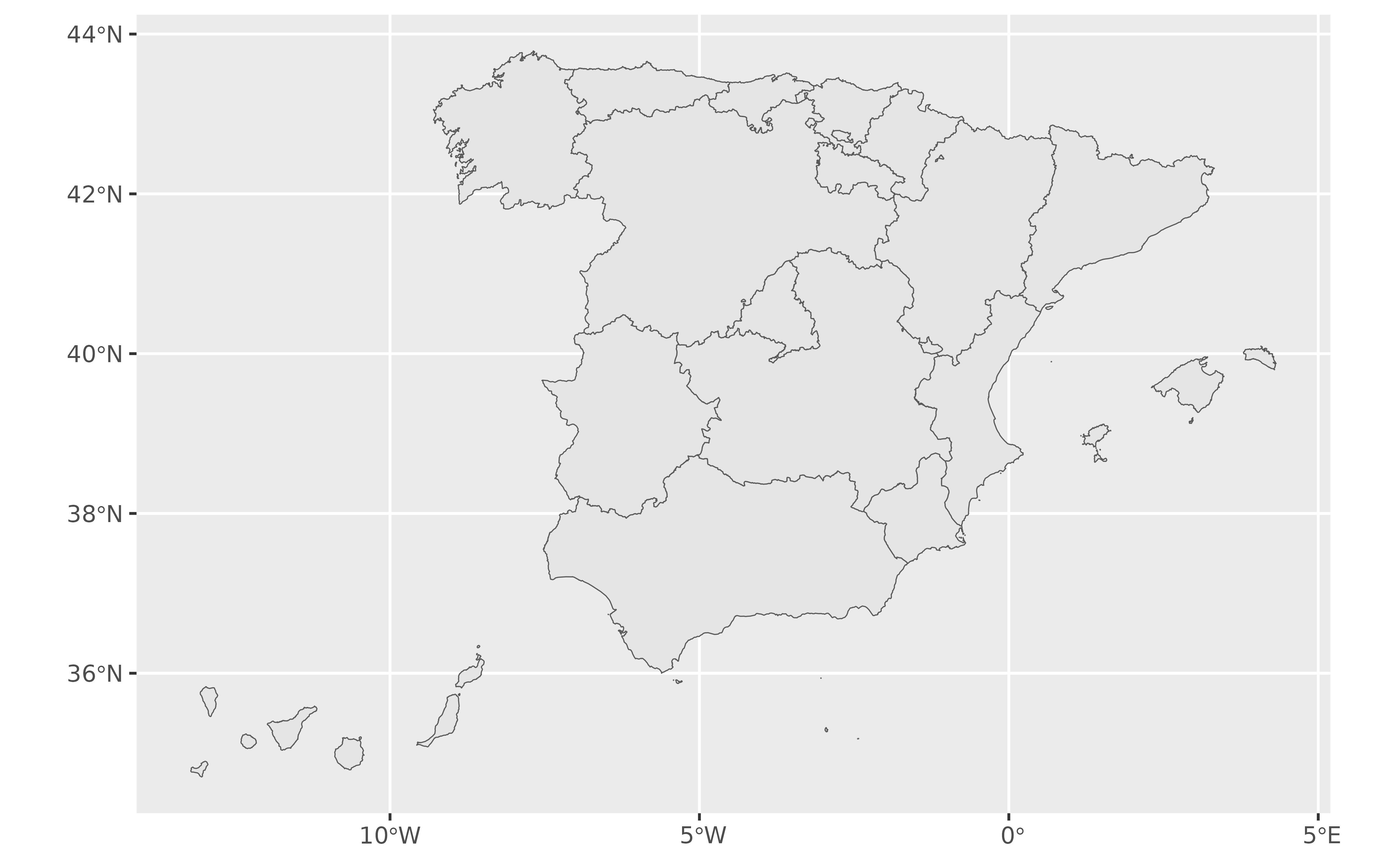

ccaa <- esp_get_ccaa()

library(ggplot2)

ggplot(ccaa) +
  geom_sf()


# Random Autonomous Communities and Cities.
random_ccaa <- esp_get_ccaa(ccaa = c(
  "Euskadi",
  "Catalunya",
  "ES-EX",
  "Canarias",
  "ES52",
  "01"
))

ggplot(random_ccaa) +
  geom_sf(aes(fill = codauto), show.legend = FALSE) +
  geom_sf_label(aes(label = codauto), alpha = 0.3) +
  coord_sf(crs = 3857)

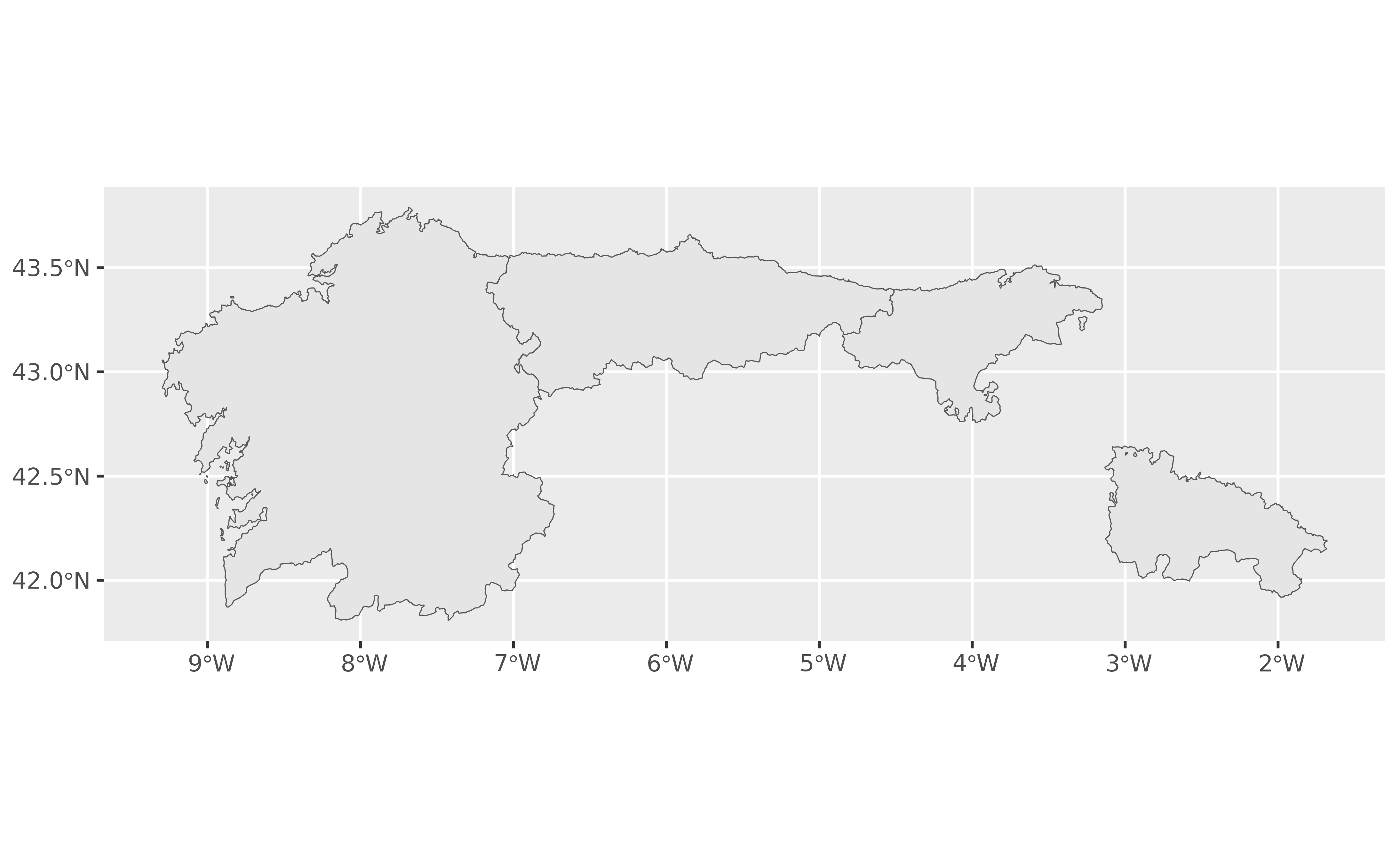

# All Autonomous Communities and Cities of a NUTS 1 region plus one.

mixed <- esp_get_ccaa(ccaa = c("La Rioja", "Noroeste"))

ggplot(mixed) +
  geom_sf()

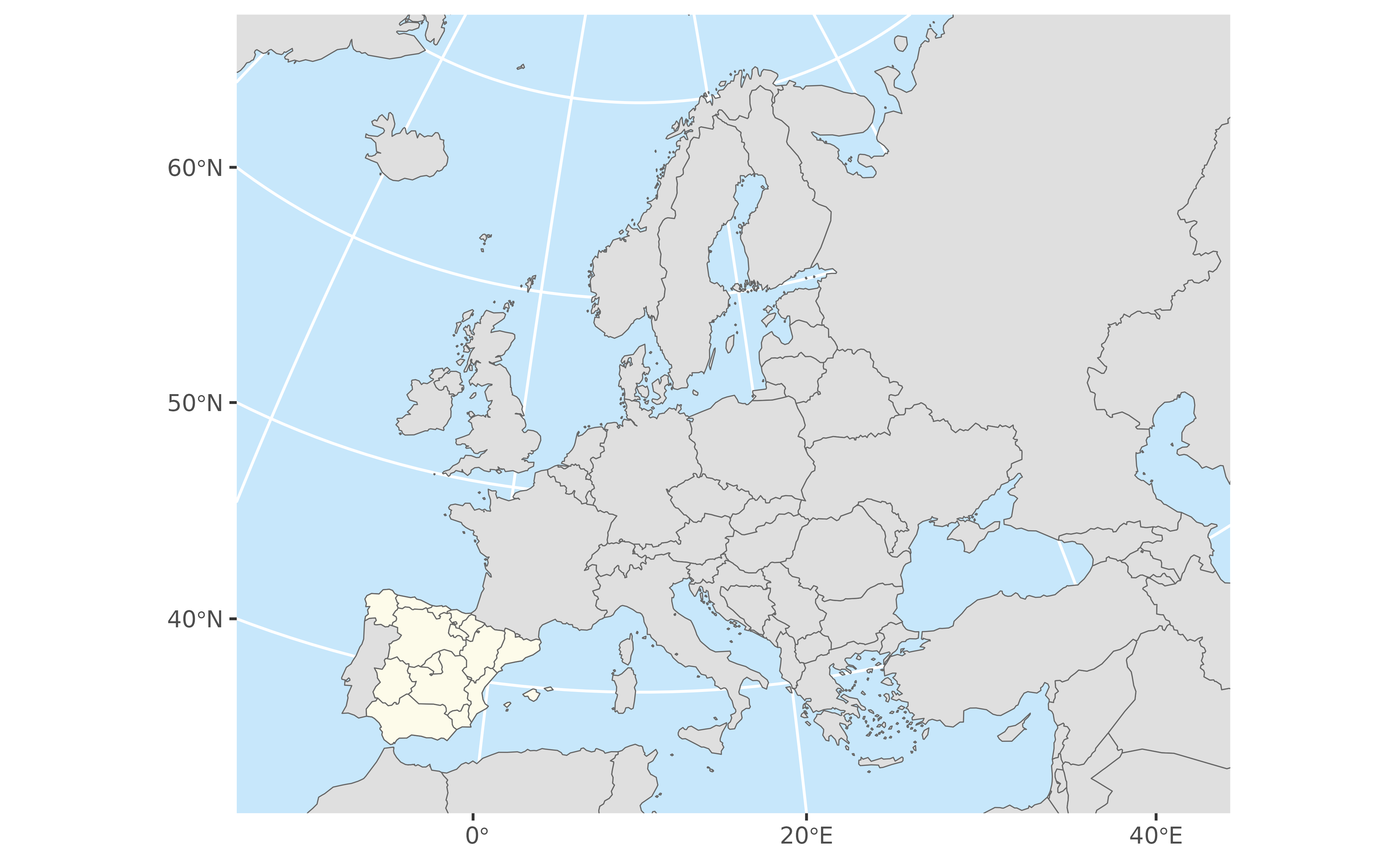

# Combine with giscoR to get countries.
# \donttest{

library(giscoR)
library(sf)
#> Linking to GEOS 3.12.1, GDAL 3.8.4, PROJ 9.4.0; sf_use_s2() is TRUE

res <- 20 # Use the same resolution.

europe <- gisco_get_countries(resolution = res)
ccaa <- esp_get_ccaa(moveCAN = FALSE, resolution = res)

ggplot(europe) +
  geom_sf(fill = "#DFDFDF", color = "#656565") +
  geom_sf(data = ccaa, fill = "#FDFBEA", color = "#656565") +
  coord_sf(
    xlim = c(23, 74) * 10e4,
    ylim = c(14, 55) * 10e4,
    crs = 3035
  ) +
  theme(panel.background = element_rect(fill = "#C7E7FB"))

# }
