Displace a sf object located in the Canary Islands

Helper function to displace an external sf object, potentially representing a location in the Canary Islands, to align it with mapSpain objects generated with moveCAN = TRUE.

Usage

esp_move_can(x, moveCAN = TRUE)

Arguments

x

An sf object. It can be an sf or sfc object.

moveCAN

A logical TRUE/FALSE or a vector of coordinates c(lat, lon). It places the Canary Islands close to Spain's mainland. Initial position can be adjusted using the vector of coordinates.

Value

A sf object of the same class and same CRS as x, displaced accordingly.

Details

This helper function makes it easier to represent objects located in the Canary Islands that have been obtained from sources other than mapSpain.

Displacing the Canary Islands

While moveCAN is useful for visualization, it will alter the actual geographic position of the Canary Islands. When using the output for spatial analysis or tiles (for example, with esp_get_tiles() or addProviderEspTiles()), set this option to FALSE to get the actual coordinates instead of the modified ones.

See also

Helpers for Canary Islands insets and displacement: esp_get_can_box()

Examples

library(sf)
teide <- data.frame(
  name = "Teide Peak",
  lon = -16.6437593,
  lat = 28.2722883
)

teide_sf <- st_as_sf(teide, coords = c("lon", "lat"), crs = 4326)

# A mapSpain object with moveCAN = TRUE is displaced.

esp <- esp_get_spain(moveCAN = c(13, 0))

library(ggplot2)

ggplot(esp) +
  geom_sf() +
  geom_sf(data = teide_sf, color = "red") +
  labs(
    title = "Canary Islands displaced",
    subtitle = "But not the external Teide object"
  )

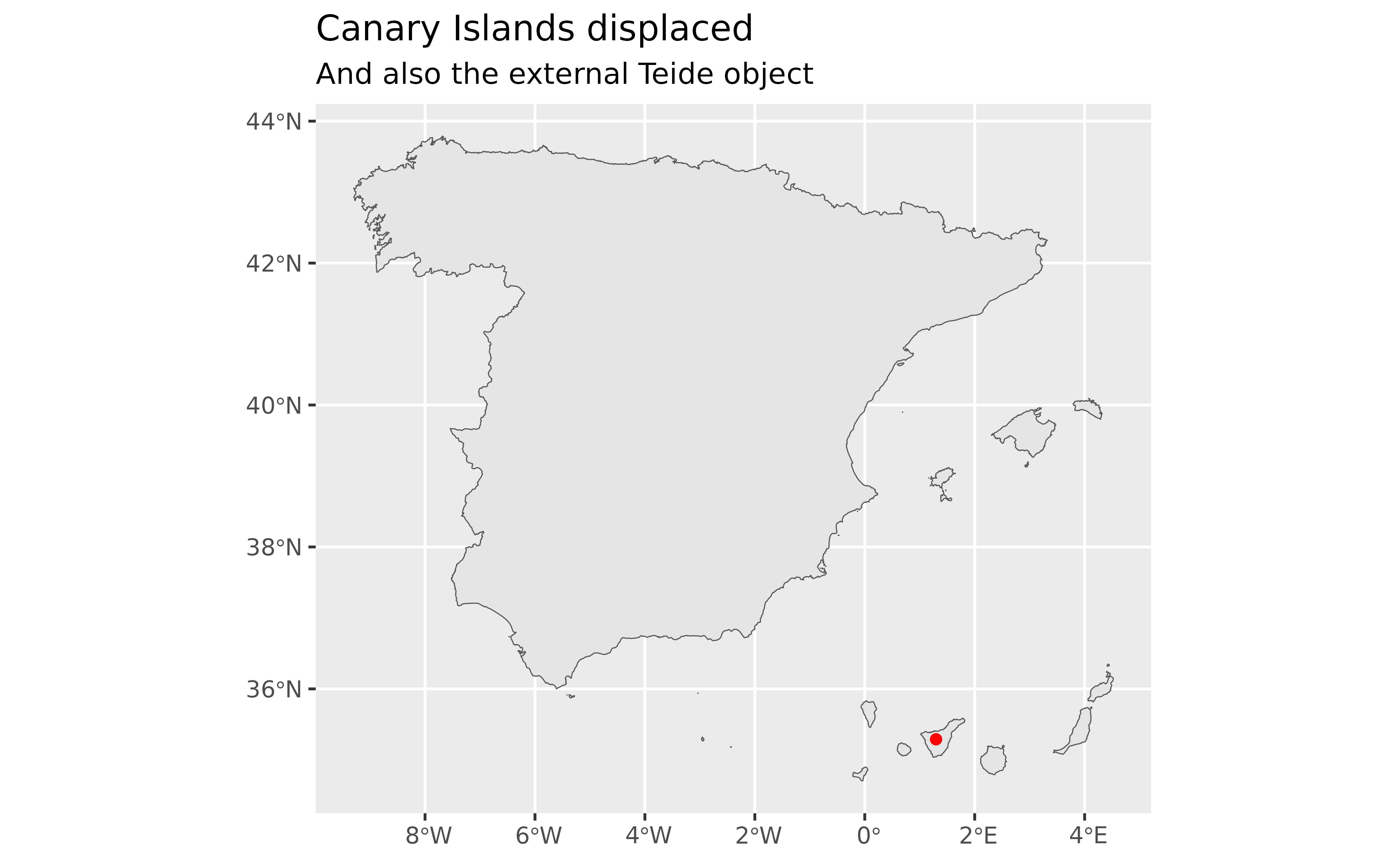

# Displace the external object too.

teide_sf_disp <- esp_move_can(teide_sf, moveCAN = c(13, 0))

ggplot(esp) +
  geom_sf() +
  geom_sf(data = teide_sf_disp, color = "red") +
  labs(
    title = "Canary Islands displaced",
    subtitle = "And also the external Teide object"
  )
