The rOpenSpain project

class: center, middle, inverse, title-slide

.title[
# The rOpenSpain project
]
.subtitle[
## R and open data
]
.author[
### Iñaki Úcar | Postdoctoral Fellow @ uc3m-Santander Big Data Institute
]
.date[
### June 9, 2022
]

---

class: base28

# Introduction

.left-column[
## When
]

.right-column[
It was **February 2018** when four people came together around open data:

- **Carlos J. Gil Bellosta**, statistical consultant, CEO @ circiteR
- **Luz Frías**, data developer, CTO @ circiteR
- **José Manuel Vera**, senior data scientist
- **Iñaki Úcar**, postdoctoral fellow @ IBiDat

### Motto

> rOpenSci is our form; Spanish public data, our matter

]

---
class: base28

# Introduction

.left-column[
## When
## What
]

.right-column[
The **github.com/rOpenSpain** organization
- Website (ropenspain.es)
- Onboarding info
- Templates (shout-outs to Diego Hernangómez)
- **Packages**

The **ropenspain.slack.com** channel
- Do not hesitate to contact us for an invitation!
]

---
class: base28

# Introduction

.left-column[
## When
## What
## How
]

.right-column[
Do you have a package about Spanish data? **Bring it to rOpenSpain!**
- The author transfers the repo to our GH organization
- The author retains full admin rights
- The package is added to the webpage and is available for installation
 through our [r-universe](https://ropenspain.r-universe.dev) organization
- We try to encourage R packaging best practices
- We try to help each other out

Do you need help? Get an invite to our Slack!
]

---

# Introduction

.left-column[
## When
## What
## How
## Overview
]

.right-column[
.pull-left[
### Statistical data
- istacbaser
- MicroDatosES
- MorbiditySpainR
- Siane

### Maps
- mapSpain
- LAU2boundaries4spain
- CatastRo, CatastRoNav
- caRtociudad
]

.pull-right[
### Government
- BOE
- infoelectoral
- senadoRES
- opendataes

### Economy
- tidyBdE

### Climate
- climaemet
- airqualityES
]
]

---
class: inverse, center, middle

# Statistical data

---

# istacbaser (on GitHub)

.pull-left[
### Authors

- José Manuel Cazorla-Artiles
- **Christian González-Martel**

### Key features

- Retrieve all the data available in the **Canary Islands Statistics Institute** API.
- Supports searching and downloading data.
- Supports **grep-like style search*.**
- Supports **Most Recent Value** queries.
]

.pull-right[
### Data sources

- [Instituto Canario de Estadística](http://www.gobiernodecanarias.org/istac/) (ISTAC).

### Output formats

- **data.frame**, with optional conversion to **POSIXct** for dates.
]

---

# MicroDatosEs (on CRAN)

.pull-left[
### Authors

- **Carlos J. Gil Bellosta**
- Carlos Neira
- Diego Paniagua Sánchez
- Fiorella Mori Peláez
- Jorge López Pérez
- José Luis Cañadas Reche

### Key features

- Retrieve and process microdata provided by Spanish statistical agencies.
]

.pull-right[
### Data sources

- [Instituto Nacional de Estadística](https://ine.es/) (INE).

### Output formats

- **data.frame**.

### Notes

- Currently covers the following datasets: **EPA** (Encuesta de Población Activa), **census** (2011), **EES** (Encuesta de Estructura Salarial), **mortality** (annual deaths in Spain; unfortunately, public microdata does not include the cause of death), **EPF** (Encuesta de Presupuestos Familiares), **padrón**.
]

---

# MorbiditySpainR (on GitHub)

.pull-left[
### Authors

- **Rafael Menéndez**

### Key features

- Retrieve and process morbidity microdata provided by Spanish statistical agencies.
- Provides functions for basic manipulation (filtering, extract diagnoses, reduce data and compute prevalences).
]

.pull-right[
### Data sources

- [Encuesta de morbilidad hospitalaria](https://www.ine.es/dyngs/INEbase/es/operacion.htm?c=Estadistica_C&cid=1254736176778&menu=resultados&secc=1254736195291&idp=1254735573175) del [Instituto Nacional de Estadística](https://ine.es/) (INE).

### Output formats

- **data.frame**.
]

---

# Siane (on GitHub)

.pull-left[
### Authors

- Carlos J. Gil Bellosta
- **Nuno Carvalho**

### Key features

- Find maps in the (pre-downloaded) Siane repository, i.e. searching by map year
  or administrative level using `siane_map()`.
- Bind numerical data to polygons using `siane_merge()`.
- Compatible with IGN maps and INE data.
]

.pull-right[
### Data sources

- [Instituto Geografico Nacional](https://www.ign.es/) (IGN).
- [Instituto Nacional de Estadística](https://ine.es/) (INE).

### Output formats

- **raster** objects.
- **data.frame**.
]

---
class: inverse, center, middle

# Maps

---

# mapSpain <img src="https://ropenspain.github.io/mapSpain/logo.png" alt="mapSpain-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[
### Authors

- **Diego Hernangómez**

### Key features

- **Easy mapping of boundaries of Spain** (nation-wide, autonomous communities, provinces, municipalities).
- Use of **WMS/WMTS image tiles** (Google Maps-like) on either static and interactive maps
  (with {`leaflet`}) provided by Spanish public organisms.
- Translates names of autonomous communities and provinces across languages (Spanish, English, Catalan, ...)
  and into standardized codes (ISO, NUTS, INE...).
]

.pull-right[
### Data sources

- [GISCO](https://ec.europa.eu/eurostat/web/gisco) (Eurostat).
- [Instituto Geografico Nacional](https://www.ign.es/) (IGN).
- For tiles: Public organisms (<https://www.idee.es/web/idee/segun-tipo-de-servicio>).

### Output formats

- **sf** for vectors (as boundaries, roads, etc.).
- **SpatRaster** ({`terra`}) for static tiles.
]

---

# mapSpain <img src="https://ropenspain.github.io/mapSpain/logo.png" alt="mapSpain-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[

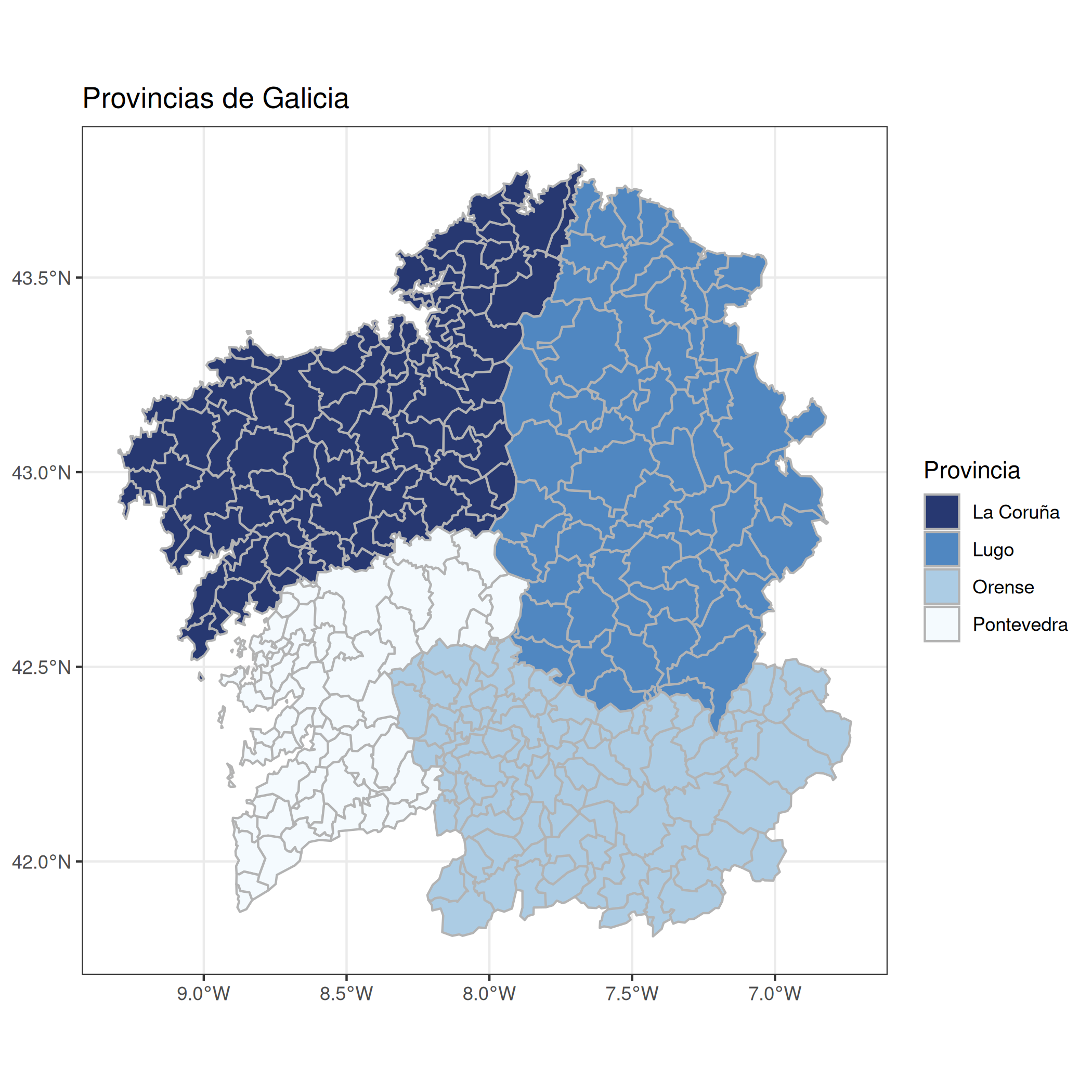

### Quick demo

```r
library(mapSpain)
library(ggplot2)

*galicia <- esp_get_munic_siane(region = "Galicia") |>
 transform(
* Provincia = esp_dict_translate(
 ine.prov.name, "es"
 )
 )

ggplot(galicia) +
  geom_sf(aes(fill = Provincia), color = "grey70") +
  labs(title = "Provincias de Galicia") +
  scale_fill_discrete(
    type = hcl.colors(4, "Blues")
  ) +
  theme_bw()
```
]

.pull-right[
<img src="index_files/figure-html/mapspain-plot-1.png" width="100%" />
]

---

# LAU2boundaries4spain (on GitHub)

.pull-left[
### Authors

- Francisco Goerlich
- **Pedro J. Pérez**

### Key features

- Datasets of historical municipality boundaries from 2002 to 2021.
]

.pull-right[
### Data sources

- [Instituto Geografico Nacional](https://www.ign.es/) (IGN).

### Output formats

- **sf** data frames.
]

---

# CatastRo <img src="https://ropenspain.github.io/CatastRo/logo.png" alt="catastro-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[
### Authors

- Ángel Delgado Panadero
- Iñaki Úcar
- **Diego Hernangómez**

### Key features

- Takes advantage of **INSPIRE Directive**.
- Retrieves cadastral **spatial data** of **buildings**, **parcels** and specific **cadastral references**.
- Get data **by bounding box** (WFS service) or **by municipality** (ATOM service).
- Retrieval of imagery via tiles available on the Cadastre.
]

.pull-right[
### Data sources

- [Cadastre of Spain](https://www.catastro.minhap.es/webinspire/index.html).
- **Does not include neither Navarre not the Basque Country**,
  as they have their own cadastral offices (see **CatastRoNav** for Navarre).

### Output formats

- **sf** for vectors (buildings, parcels, etc.).
- **SpatRaster** (`terra`) for static tiles.
]

---

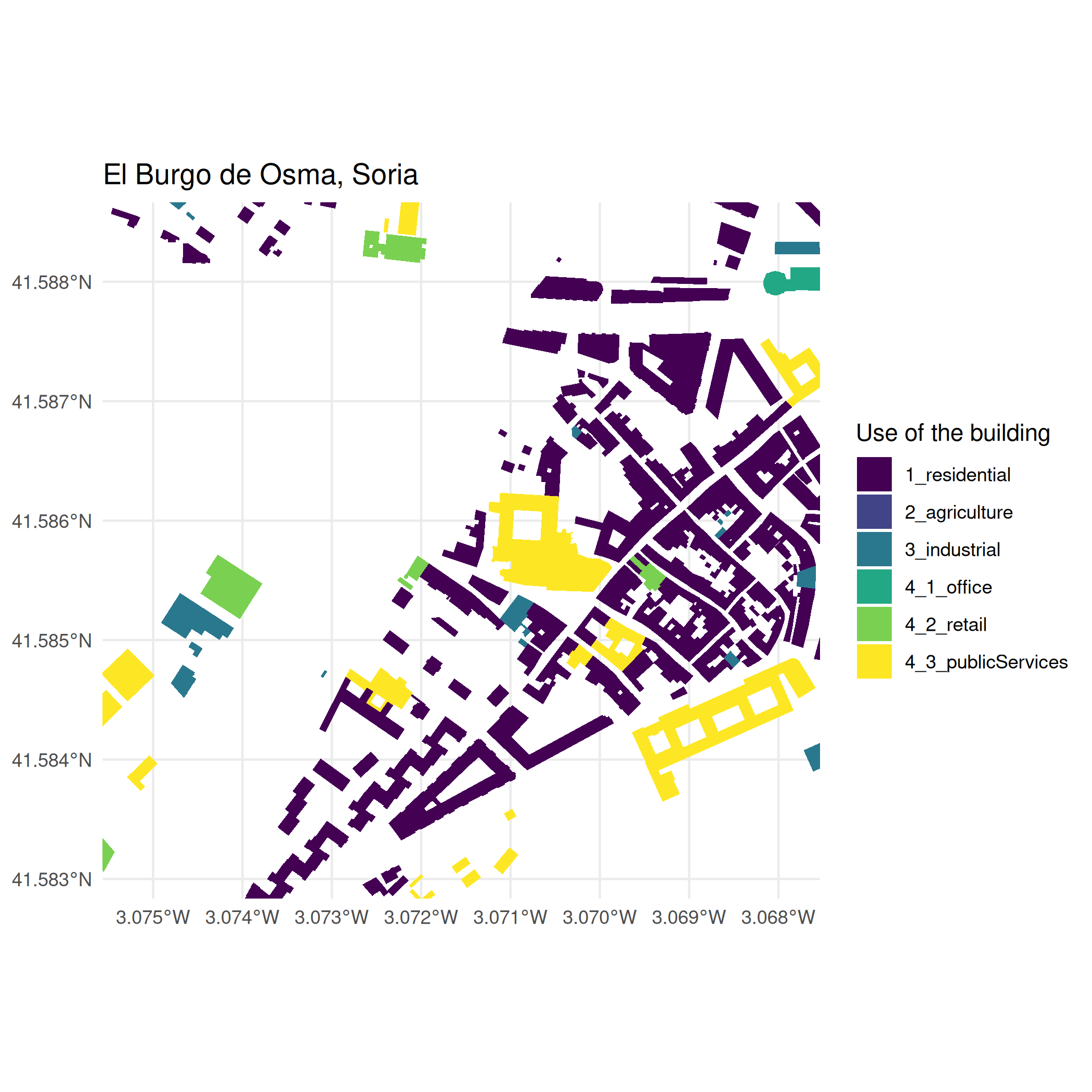

# CatastRo <img src="https://ropenspain.github.io/CatastRo/logo.png" alt="catastro-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[
### Quick demo

```r
library(CatastRo)
library(ggplot2)

*burgo_osma <- catr_atom_get_buildings(
 "Burgo de Osma"
) |> sf::st_transform(4326)

ggplot(burgo_osma) +
  geom_sf(aes(fill = currentUse), col = NA) +
  scale_fill_viridis_d(na.translate = FALSE) +
  theme_minimal() +
  coord_sf(
    xlim = c(-3.0752, -3.0679),
    ylim = c(41.5831, 41.5884)
  ) +
  labs(
    title = "El Burgo de Osma, Soria",
    fill = "Use of the building"
  )
```
]

.pull-right[
<img src="index_files/figure-html/catastro-plot-1.png" width="100%" />
]

---

# CatastRoNav <img src="https://ropenspain.github.io/CatastRoNav/logo.png" alt="catastronav-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on GitHub)

.pull-left[
### Authors

- **Diego Hernangómez**

### Key features

- Takes advantage of **INSPIRE Directive**.
- Retrieves cadastral **spatial data** of **buildings**, **parcels** and specific **cadastral references**.
- Get data **by bounding box** (WFS service).
]

.pull-right[
### Data sources

- [Cadastre of Navarre](https://idena.navarra.es/portal/servicios?lang=en).

### Output formats

- **sf** objects.

### Notes

- Service provided by the **Cadastre of Navarre is more limited** than the provided
  by the Spanish Cadastre (see **CatastRo** package).
]

---

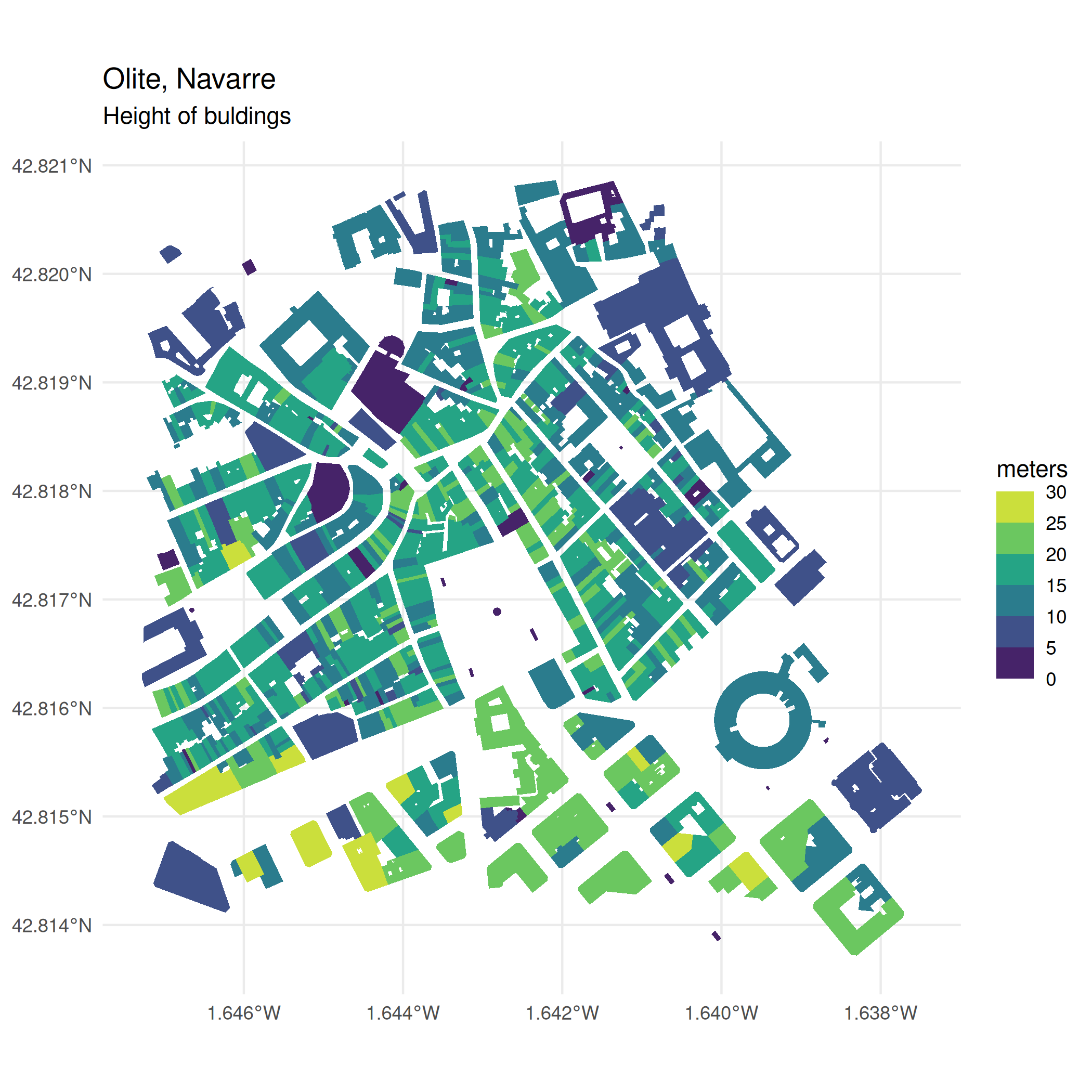

.pull-left[
### Quick demo

```r
library(CatastRoNav)
library(ggplot2)

olite <- c(-1.646812, 42.814528, -1.638036, 42.820320)

*olite_bu <- catrnav_wfs_get_buildings_bbox(
 olite,
 srs = 4326
)

ggplot(olite_bu) +
  geom_sf(aes(fill = value), color = NA) +
  scale_fill_viridis_b(
    show.limits = TRUE,
    breaks = seq(0, 30, 5)
  ) +
  theme_minimal() +
  labs(
    title = "Olite, Navarre",
    subtitle = "Height of buldings",
    fill = "meters"
  )
```
]

.pull-right[
<img src="index_files/figure-html/catastronav-plot-1.png" width="100%" />
]

---

# caRtociudad (on GitHub)

.pull-left[
### Authors

- **Carlos J. Gil Bellosta**
- Luz Frías

### Key features

- Access to **CartoCiudad API**, which provides mapping and other related services for Spain.
- Services: geocoding, reverse geocoding, routes, maps...
- **Unlimited and free** (no quota limits, no registration procedures).

]

.pull-right[
### Data sources

- [CartoCiudad](https://www.cartociudad.es/web/portal).

### Output formats

- **data.frame**.
- **ggmap**-compatible **raster** objects.
]

---

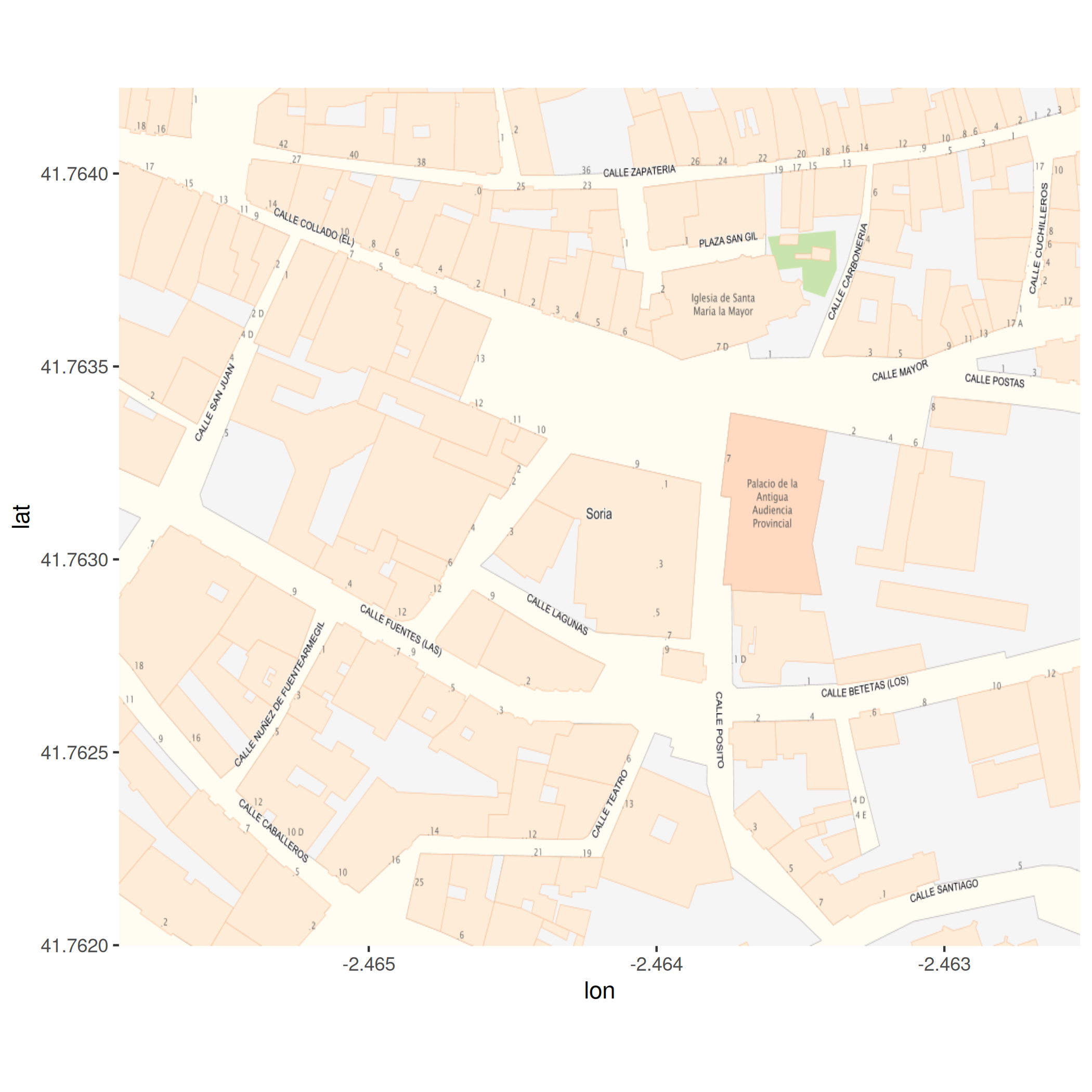

# caRtociudad (on GitHub)

.pull-left[
### Quick demo

```r
library(caRtociudad)

*soria <- cartociudad_geocode("ayuntamiento soria")
*soria_map <- cartociudad_get_map(
 c(soria$lat, soria$lng), 0.3)

ggmap::ggmap(soria_map)
```
]

.pull-right[
<img src="index_files/figure-html/caRtociudad-plot-1.png" width="100%" />
]

---
class: inverse, center, middle

# Government

---

# BOE (on GitHub)

.pull-left[
### Authors

- **Lluís Revilla Sancho**

### Key features

- Retrieve data from **Boletín Oficial del Estado** (BOE).
- Retrieve data from **Boletín Oficial del Registro Mercantil del Estado** (BORME).
- Main function `retrieve_sumario()` to retrieve summaries by date.
- Additional functions to obtain URLs and download publications.
]

.pull-right[
### Data sources

- [Agencia Estatal Boletín Oficial del Estado](https://boe.es/).

### Output formats

- **data.frame**.
- XML document.

### Notes

- See <https://llrs.github.io/BOE_historico> for a detailed analysis.
]

---

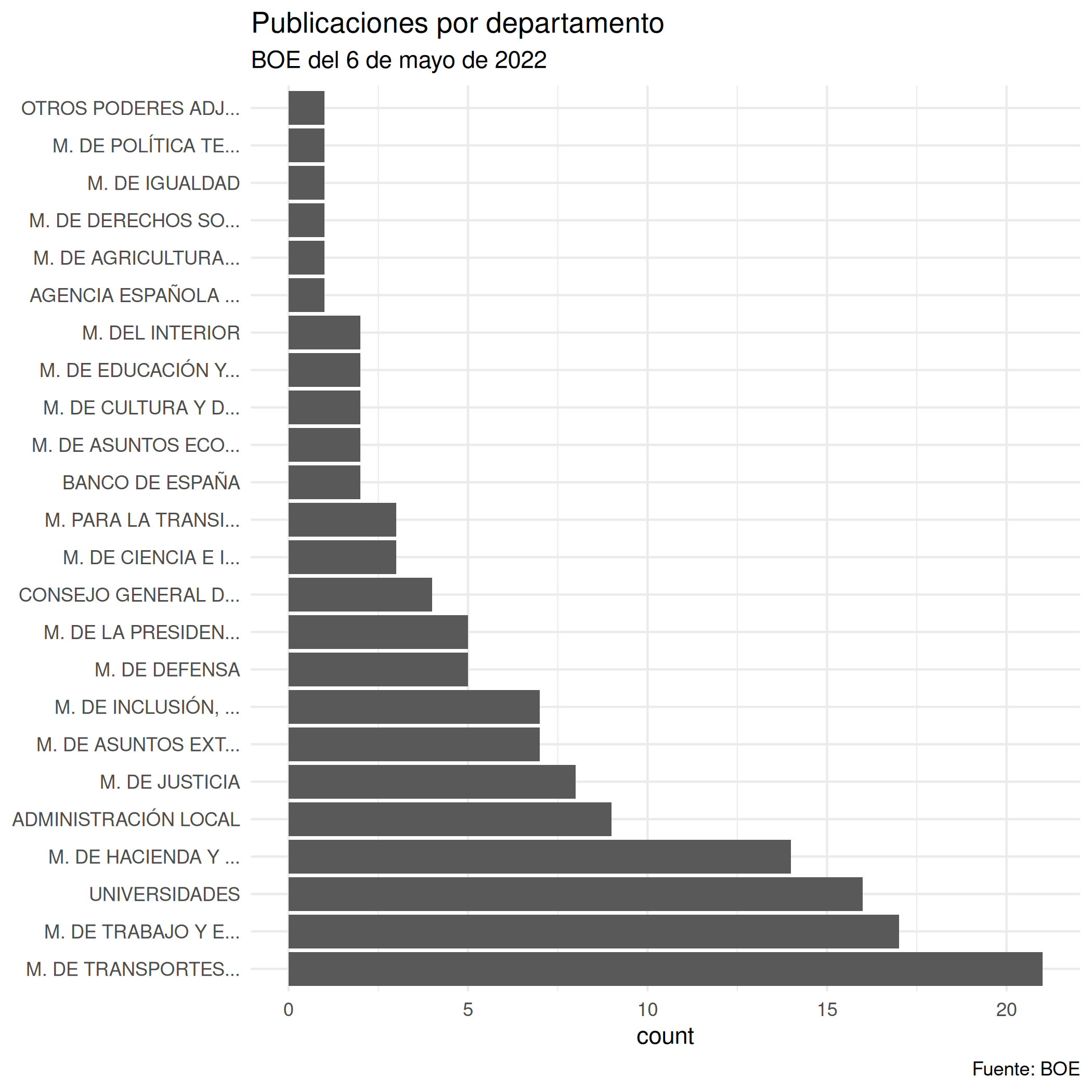

# BOE (on GitHub)

.pull-left[
### Quick demo

```r
library(BOE)
library(ggplot2)

*sumario <- retrieve_sumario(as.Date("2022-05-06")) |>
 transform(dpt = sub("MINISTERIO", "M.", departament)) |>
 transform(dpt = stringr::str_trunc(dpt, 20))

ggplot(sumario) +
  aes(forcats::fct_infreq(dpt)) +
  geom_bar() +
  coord_flip() +
  theme_minimal() +
  labs(
    title = "Publicaciones por departamento",
    subtitle = "BOE del 6 de mayo de 2022",
    caption = "Fuente: BOE",
    x = NULL
  )
```
]

.pull-right[
<img src="index_files/figure-html/boe-plot-1.png" width="100%" />
]

---

# infoelectoral (on GitHub)

.pull-left[
### Authors

- **Héctor Meleiro**

### Key features

- Retrieve election data at municipality level.
- Retrieve election data at polling station level.
- Retrieve election candidates data.
- Provides datasets with administrative codes
  for autonomous communities, provinces, and municipalities,
  as well as median income data for census tracts.
]

.pull-right[
### Data sources

- [Ministerio del Interior](https://infoelectoral.interior.gob.es/opencms/es/inicio/).

### Output formats

- **data.frame**.
]

---

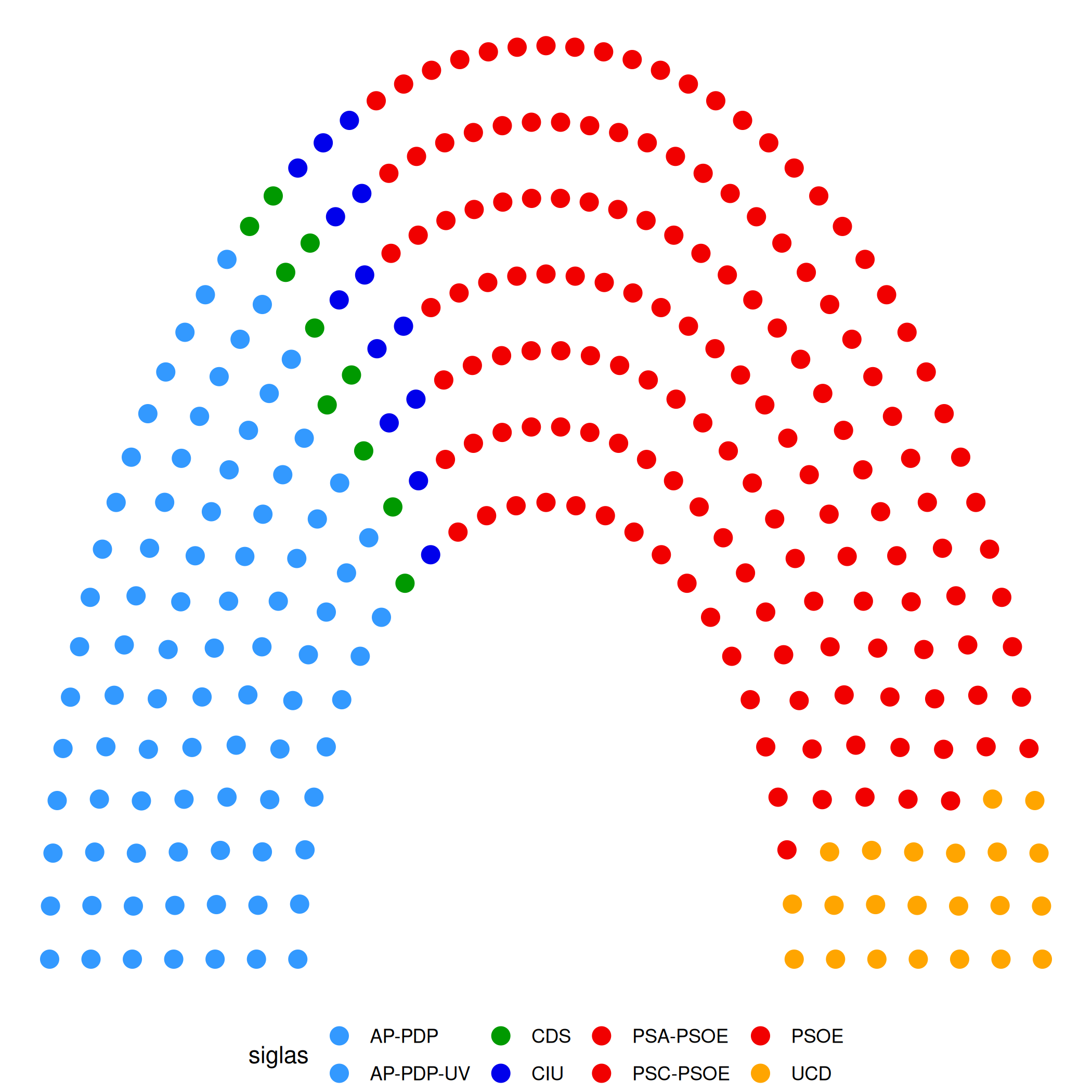

# infoelectoral (on GitHub)

.pull-left[
### Quick demo

```r
library(infoelectoral)
library(dplyr)
library(ggplot2)

*df <- municipios("congreso", anno="1982", mes="10") |>
 group_by(siglas) |>
 summarise(votos = sum(votos)) |>
 mutate(seats = round(votos / sum(votos) * 350)) |>
 filter(seats >= 10)

df <- ggparliament::parliament_data(
 df, type="semicircle", 7, df$seats)

ggplot(df) +
  aes(x, y, colour = siglas) +
  ggparliament::geom_parliament_seats() +
  ggparliament::theme_ggparliament() +
  scale_color_manual(values=c(
    "#3399FF", "#3399FF", "#009900", "#0000EB",
    "#F10000", "#F10000", "#F10000", "#FFA500"
  )) +
  theme(legend.position = 'bottom')
```
]

.pull-right[
<img src="index_files/figure-html/infoelectoral-plot-1.png" width="100%" />
]

---

# senadoRES (on GitHub)

.pull-left[
### Authors

- **Lluís Revilla Sancho**

### Key features

- Retrieve senators data since 1977.
- Retrieve summaries, commissions, documents, initiatives...
]

.pull-right[
### Data sources

- [Senado](https://www.senado.es/web/relacionesciudadanos/datosabiertos/catalogodatos/index.html).

### Output formats

- **data.frame**.
]

---

# senadoRES (on GitHub)

.pull-left[

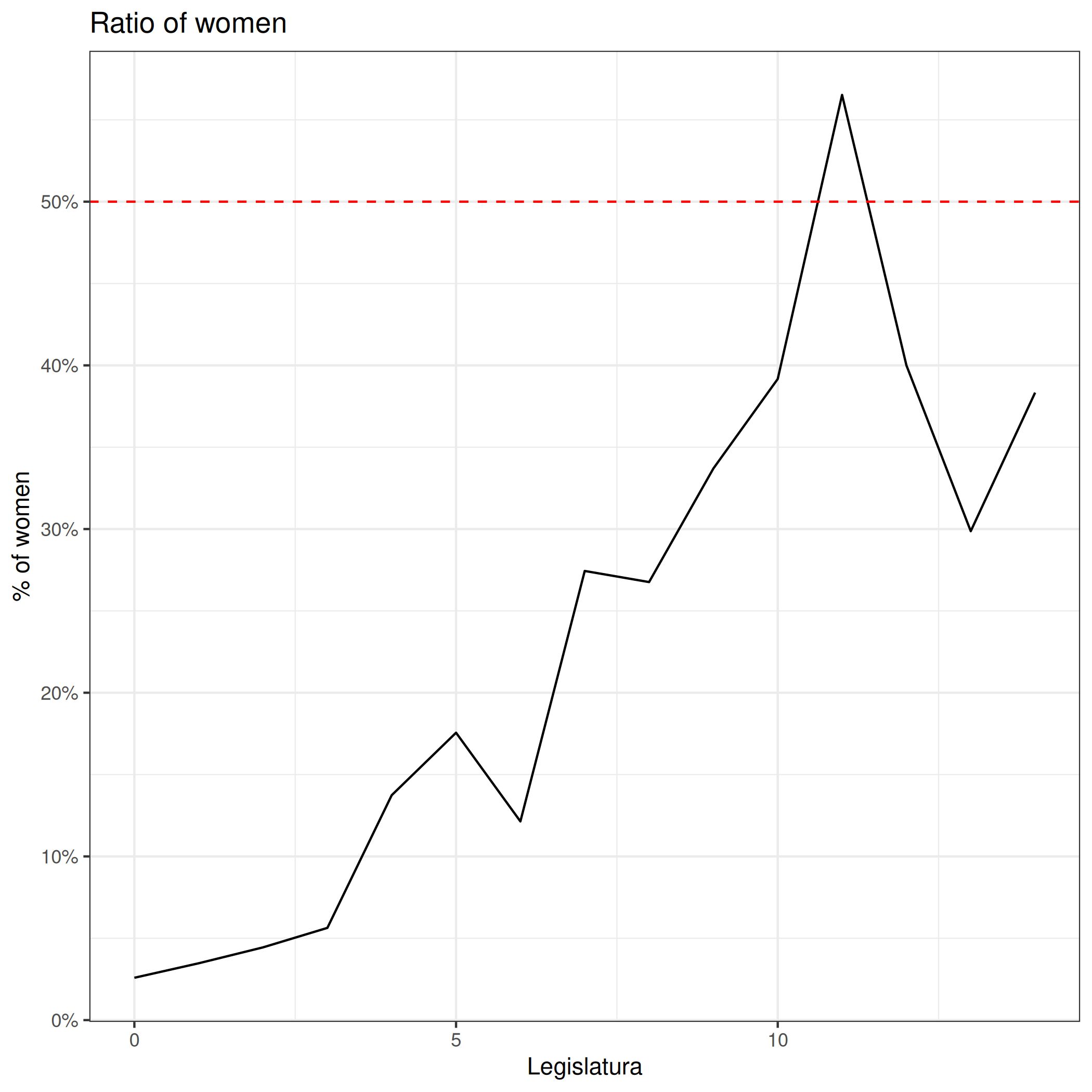

### Quick demo

```r
library(senadoRES)
library(dplyr)
library(ggplot2)

ggplot(df) +
  aes(legislatura, ratio) +
  geom_line() +
  geom_hline(yintercept=0.5, linetype=2, col="red") +
  scale_y_continuous(
    labels = scales::percent_format(accuracy = 1)) +
  theme_bw() +
  labs(
    title = "Ratio of women",
    x = "Legislatura",
    y = "% of women"
  )
```
]

.pull-right[
<img src="index_files/figure-html/senadoRES-plot-1.png" width="100%" />
]

---

# opendataes (on GitHub)

.pull-left[
### Authors

- **Jorge Cimentada**
- Jorge López

### Key features

- Retrieve data from **datos.gob.es**, the open-data initiative from the Spanish Government.
- Currently, supports CSV format and 11 publishers (see `publishers_available`).
- The identifier of a web-based search can be directly provided to `openes_load()`.
- R-based search via `openes_keywords()`.
]

.pull-right[
### Data sources

- [datos.gob.es](https://datos.gob.es/).

### Output formats

- An object with `metadata` and `data`, both as **tibble**.
]

---
class: inverse, center, middle

# Economy

---

# tidyBdE <img src="https://ropenspain.github.io/tidyBdE/logo.png" alt="tidyBdE-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[
### Authors

- **Diego Hernangómez**

### Key features

- API package that helps to retrieve data from Banco de España.
  **~14.000** time series available. Specific series can be search by keyword.
- Includes **macroeconomic data** from the Statistical Bulletin,
  **key summary indicators, exchange rates and interest rates**.
- Helper functions to retrieve some of the most relevant indicators via `bde_ind_*` functions.
- Specific color palettes and theme for {`ggplot2`}.
]

.pull-right[
### Data sources

- [Bank of Spain](https://www.bde.es/webbde/en/estadis/infoest/descarga_series_temporales.html)
  time-series bulk data download. This includes also data from ECB, INE, Eurostat, etc.

### Output formats

- **tibble**, with dates and numbers formatted to base **R** specification
  (i.e. `2,000.32` with decimal comma is converted to `2000,32`).
]

---

# tidyBdE <img src="https://ropenspain.github.io/tidyBdE/logo.png" alt="tidyBdE-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[

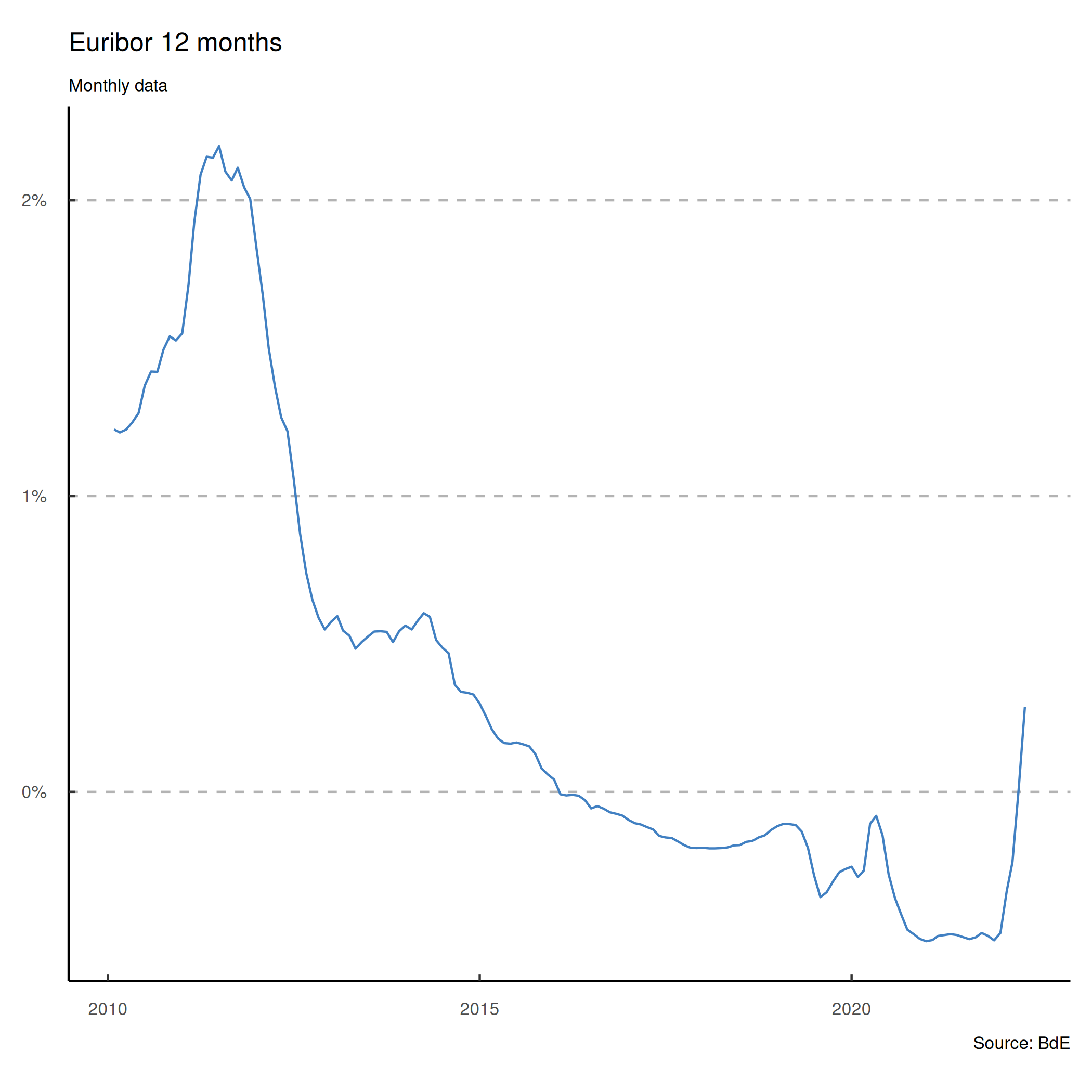

### Quick demo

```r
library(tidyBdE)
library(ggplot2)

*euribor_month <- bde_ind_euribor_12m_monthly() |>
 subset(Date > "2010-01-01")

ggplot(euribor_month) +
  aes(Date, Euribor_12M_Monthly) +
* geom_line(colour = bde_vivid_pal()(1)) +
  scale_y_continuous(
    labels = scales::number_format(suffix = "%")
  ) +
* theme_bde() +
  labs(
    title = "Euribor 12 months",
    subtitle = "Monthly data",
    caption = "Source: BdE"
  )
```
]

.pull-right[
<img src="index_files/figure-html/tidybde-plot-1.png" width="100%" />
]

---
class: inverse, center, middle

# Climate

---

# climaemet <img src="https://ropenspain.github.io/climaemet/logo.png" alt="catastro-logo" height="70" style="margin-top: -10px;vertical-align: middle;"> (on CRAN)

.pull-left[
### Authors

- Manuel Pizarro
- **Diego Hernangómez**
- Gema Fernández-Avilés

### Key features

- Retrieve climatic information registered by the AEMET stations (wind speed, temperature, air pressure...).
- Optional spatial information in **sf** format.
- Create scientific graphs (climate charts, trend analysis of climate time series,
  temperature and precipitation anomalies maps, “warming stripes” graphics, climatograms, etc.).
]

.pull-right[
### Data sources

- [Agencia Estatal de Meteorología](https://opendata.aemet.es/centrodedescargas/inicio).

### Output formats

- Formatted **tibble** for compatibility with **tidyverse**.
- Dates and numbers are formatted properly.
- Geo-tagged points (**sf**) using the option `return_sf = TRUE`.

### Notes

- (Free) API key required ([go get it](https://opendata.aemet.es/centrodedescargas/obtencionAPIKey)).
  Can be recorded as environment variable on R using `aemet_api_key(..., install=TRUE)`.
]

---

.pull-left[

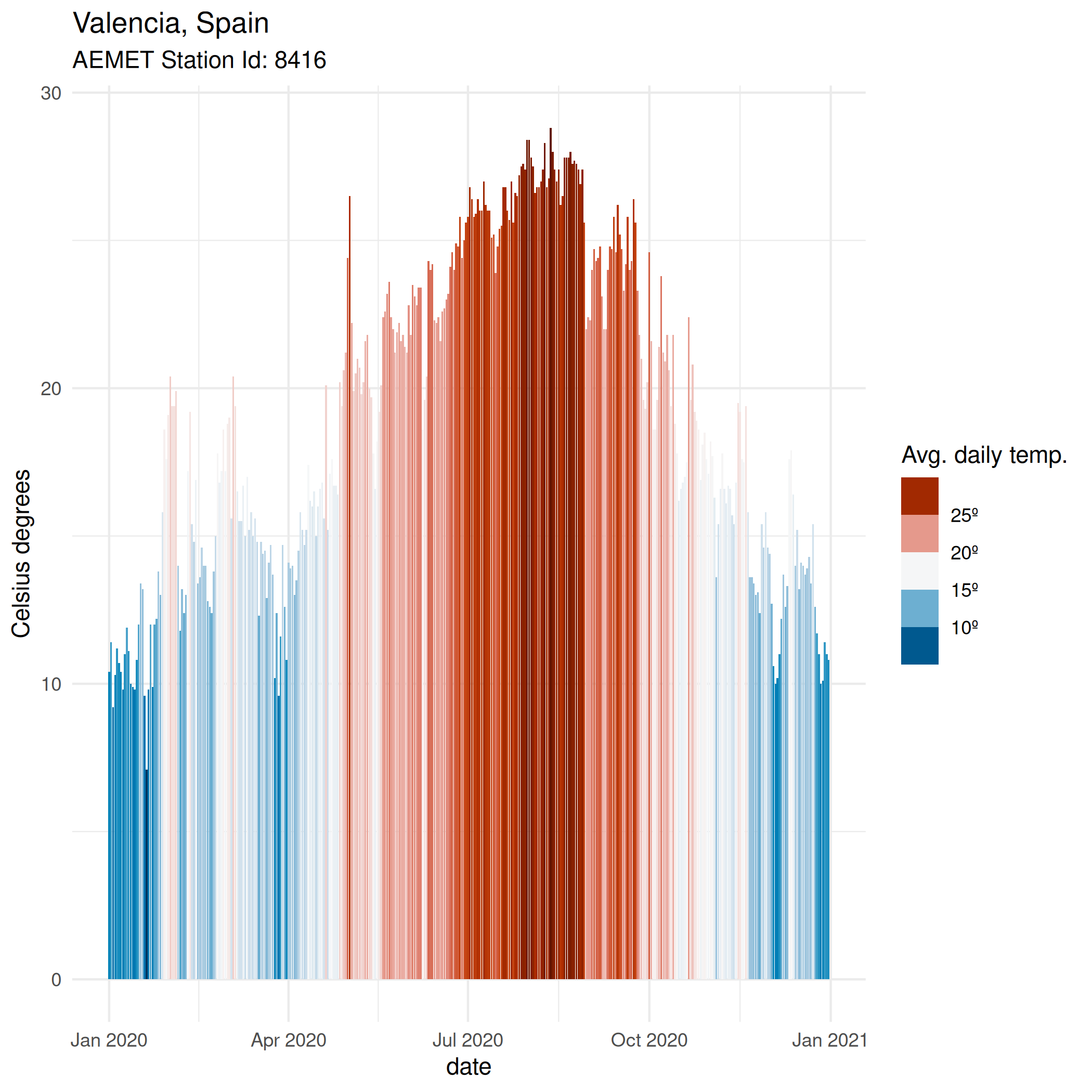

### Quick demo

```r
library(climaemet)
library(ggplot2)

*temp2020 <- aemet_daily_period(
 "8416",
 start = 2020, end = 2020
)

ggplot(temp2020) +
  geom_col(aes(fecha, tmed, fill = tmed)) +
  scale_fill_gradientn(
    colours = hcl.colors(20, "RdBu", rev = TRUE),
    labels = scales::label_number(suffix = "º")
  ) +
  guides(fill = guide_colorsteps()) +
  theme_minimal() +
  labs(
    title = "Valencia, Spain",
    subtitle = "AEMET Station Id: 8416",
    fill = "Avg. daily temp.",
    y = "Celsius degrees",
    x = "date"
  )
```
]

.pull-right[
<img src="index_files/figure-html/climaemet-plot-1.png" width="100%" />
]

---

# airqualityES (on CRAN)

.pull-left[
### Authors

- **Jose V. Die**
- Jose R. Caro

### Key features

- Dataset of **air quality measurements** in Spain from 2001 to 2018.
- Measurements of several pollutants: As B(a)P Cd Ni Pb PM10 PM2.5.
- Dataset of measurement stations.
]

.pull-right[
### Data sources

- [Ministerio para la Transición Ecológica y el Reto Demográfico](https://www.miteco.gob.es/es/calidad-y-evaluacion-ambiental/temas/atmosfera-y-calidad-del-aire/calidad-del-aire/evaluacion-datos/datos/Default.aspx).

### Output formats

- **tibble**.
]

---

# airqualityES (on CRAN)

.pull-left[

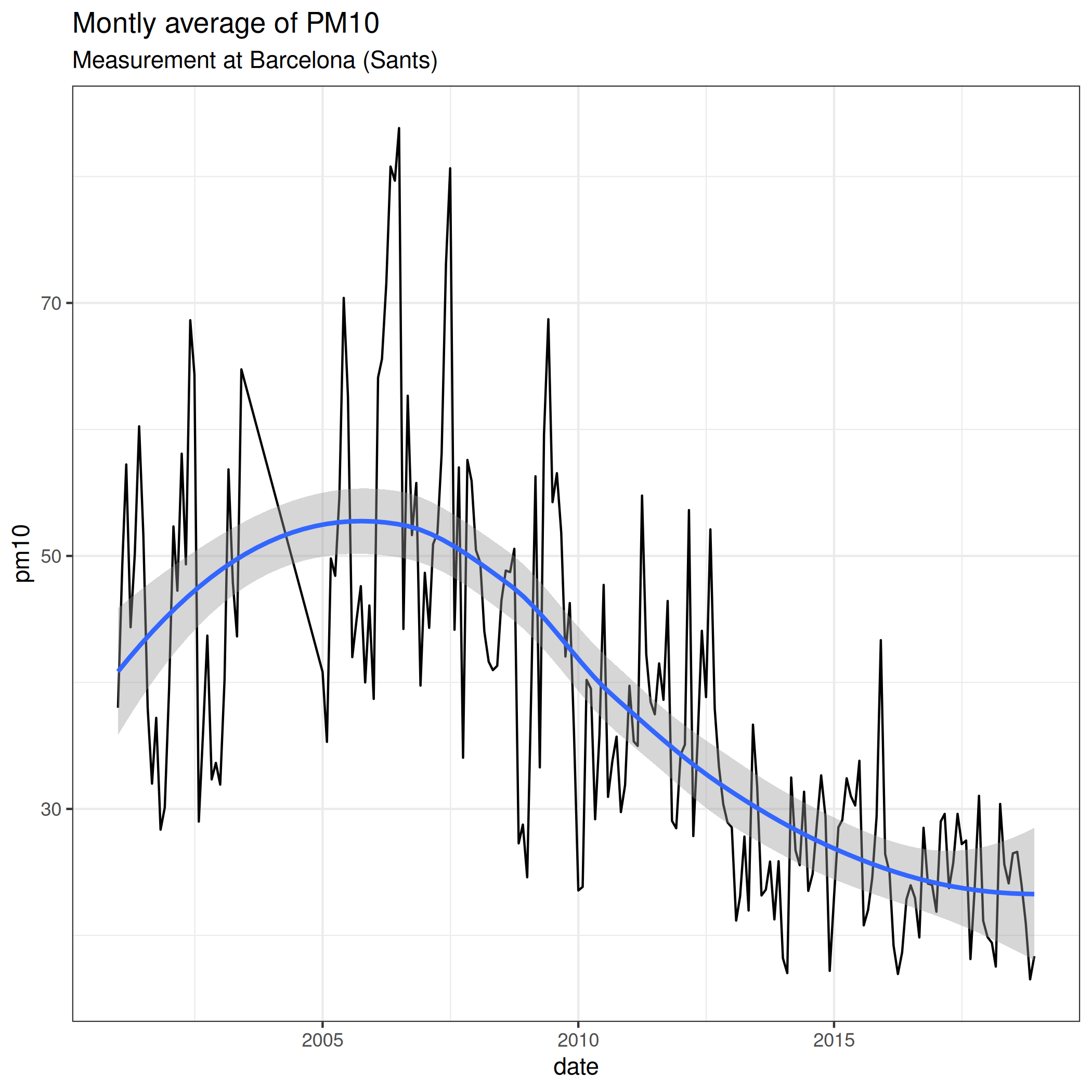

### Quick demo

```r
library(dplyr)
library(ggplot2)

*selection <- airqualityES::stations |>
 filter(station_name == "Barcelona (Sants)")

*df <- airqualityES::airqES |>
 filter(grepl(selection$id, station_id)) |>
 filter(pollutant == "PM10") |>
 mutate(pm10 = rowMeans(
 across(starts_with("D")), na.rm=TRUE)) |>
 mutate(date = as.Date(paste(year, month, 1, sep="-")))

ggplot(df) +
  aes(date, pm10) +
  geom_line() +
  geom_smooth() +
  theme_bw() +
  labs(
    title = "Montly average of PM10",
    subtitle = "Measurement at Barcelona (Sants)"
  )
```
]

.pull-right[
<img src="index_files/figure-html/airqualityES-plot-1.png" width="100%" />
]

---
class: base24

# Join rOpenSpain!

- Much more could be done about the retrieval of statistical data
  - In particular, we still lack an **"inebaser"** similar to istacbaser

- Mapping needs are pretty much covered, but improvements can always be made
  - We still lack cadastral access to the Basque Country
  - Others would require a transition to the new spatial stack (based on **sf**)

- **opendataes** needs your help!
  - It does a great job setting the framework required to work with datos.gob.es
  - There are many publishers and formats that could be added

- Do you have other ideas? We'd love to hear you out!

---
class: center, middle, end-slide

# Thanks!

Slides created via the R package [**xaringan**](https://github.com/yihui/xaringan) with the [**rosxaringan**](https://github.com/rOpenSpain/rosxaringan) template.

The chakra comes from [remark.js](https://remarkjs.com), [**knitr**](https://yihui.org/knitr/), and [R Markdown](https://rmarkdown.rstudio.com).
